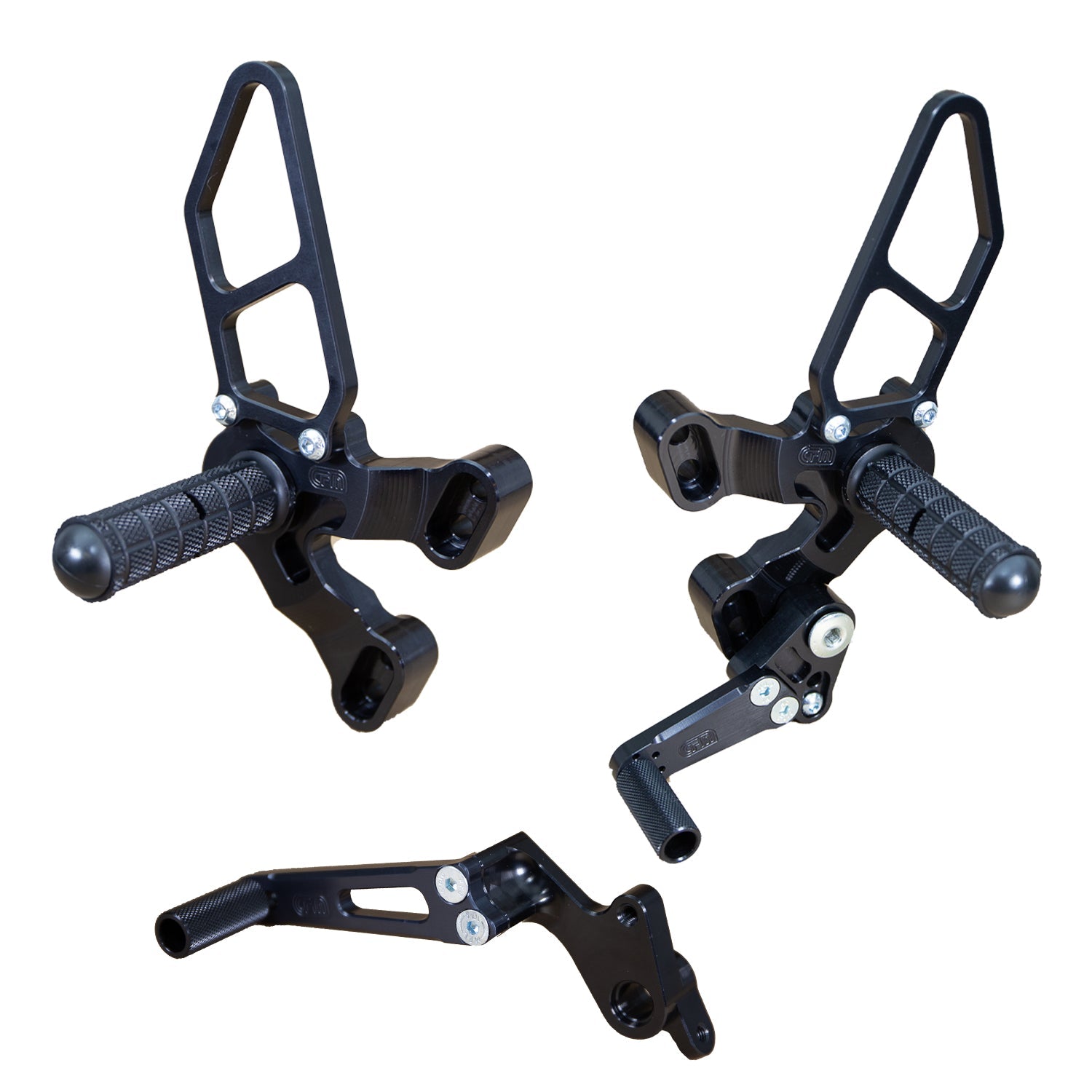

The foot controls are one of the most vital connections you have with your motorcycle. As a result Woodcraft designs and builds the best Rearsets available to ensure your motorcycle reacts the way you intend it to.
- CNC machined from 6061-T6 billet aluminum and offer more than twice the durability of OEM rearset brackets.
- 3-piece Pedals giving you an even stronger assembly and continuing our tradition of easy part replacement.
- Our trick knurled footpegs give supreme feedback and the best traction available today.
- Woodcraft rearset kits offer eccentric foot and toe pegs for adjustability (where applicable).
- Virtually any part in our rearset kit can be purchased separately
TECHNICAL DATA:
Shift Pattern: This complete rearset kit can be used in STD or GP shift.
Peg Movement: up 3/8" to 1.25''- forward 0.25" to back 3/8".
Quickshifter: Push type quickshifter in STD shift- Pull type in GP shift - requires purchase of a shorter shift rod.

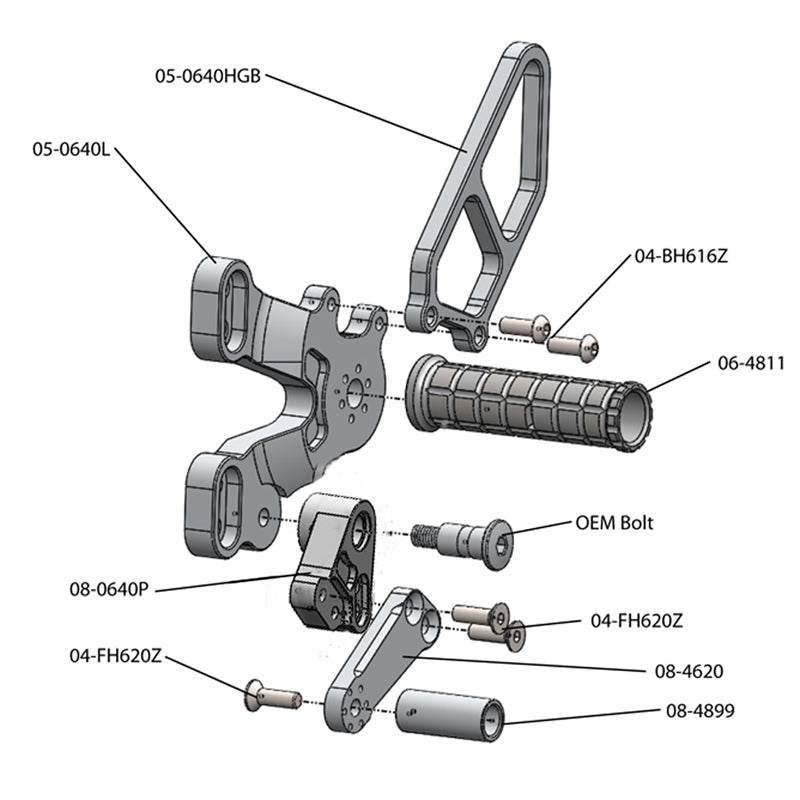

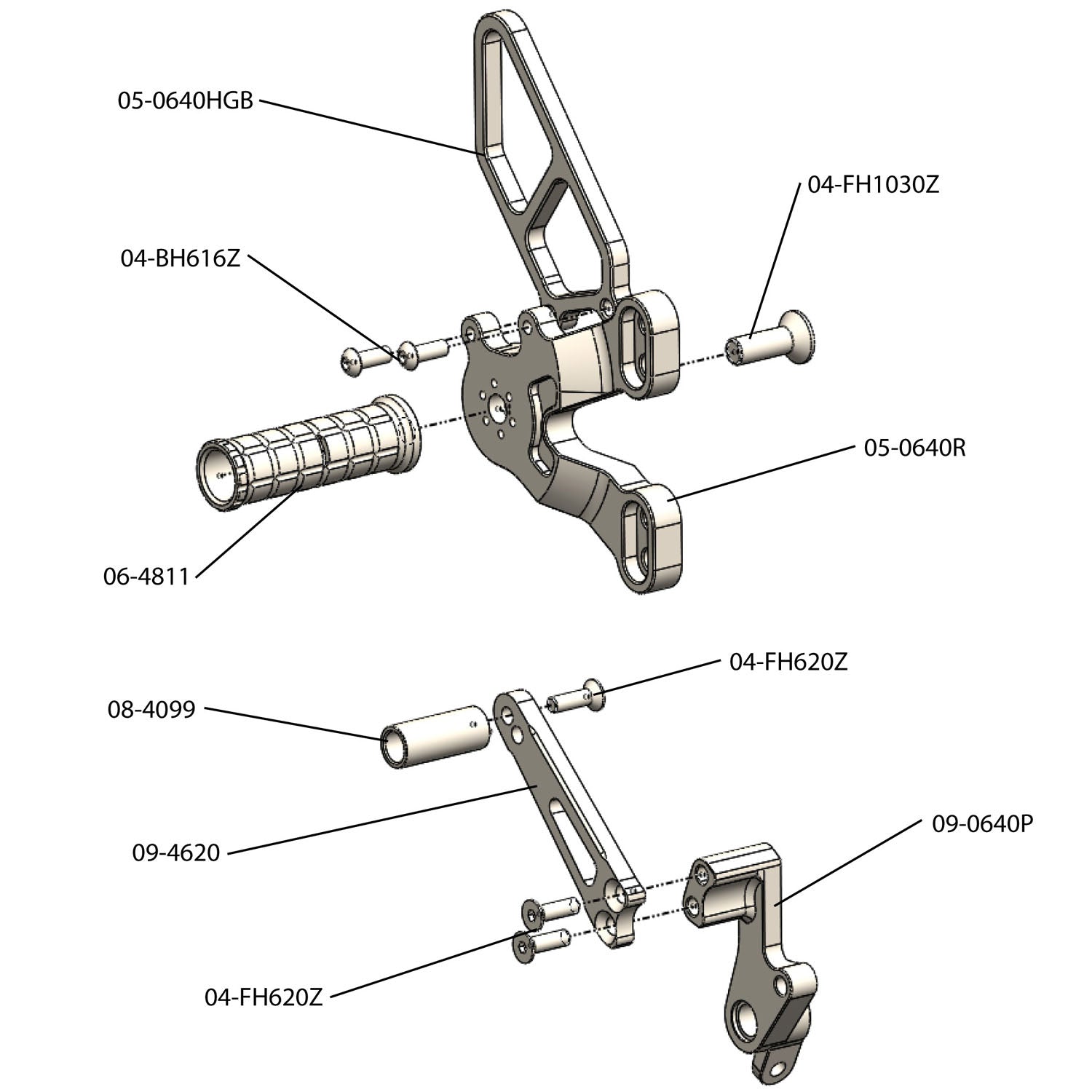

OEM Parts: Woodcraft rearsets assume you are replacing OEM rearsets. This kit utilizes some OEM components - see exploded drawings for details.
Notes
In the low position- the shifter can contact the OEM bodywork. For clearance- use a drum sanding bit with a dremel tool to make a small notch (this is explained in the Installation Instructions). If you require GP shift using a Ducati unit- please order a 05-0641 or 05-0641B kit.
Brake Pedal Return Spring 09-7175
Brake Pressure Switch 03-0105
Model Fitment
- 2007 Ducati 1098
- 2007 Ducati 1098 R
- 2007 Ducati 1098 S
- 2008 Ducati 1098
- 2008 Ducati 1098 R
- 2008 Ducati 1098 S
- 2008 Ducati 1198 SP
- 2008 Ducati 848
- 2009 Ducati 1098 R
- 2009 Ducati 1198
- 2009 Ducati 1198 S
- 2009 Ducati 1198 SP
- 2009 Ducati 848
- 2010 Ducati 1098 R
- 2010 Ducati 1198
- 2010 Ducati 1198 S
- 2010 Ducati 848
- 2011 Ducati 1098 R
- 2011 Ducati 1198
- 2011 Ducati 1198 S
- 2011 Ducati 848
- 2011 Ducati 848 EVO
- 2012 Ducati 848 EVO
- 2013 Ducati 848 EVO
Download Installation Instructions:
📄 - IN05-640_rev1021.pdf
