Woodcraft - 05-0640 Ducati 848/1098/1198/848 EVO Rearset Black
Woodcraft - 05-0640 Ducati 848/1098/1198/848 EVO Rearset Black
Note: Sold out items may be available via special order, contact us if you are interested in this and we will advise on an ETA for it to be back in stock, and give you the opportunity to pre-order if you'd like.
Couldn't load pickup availability

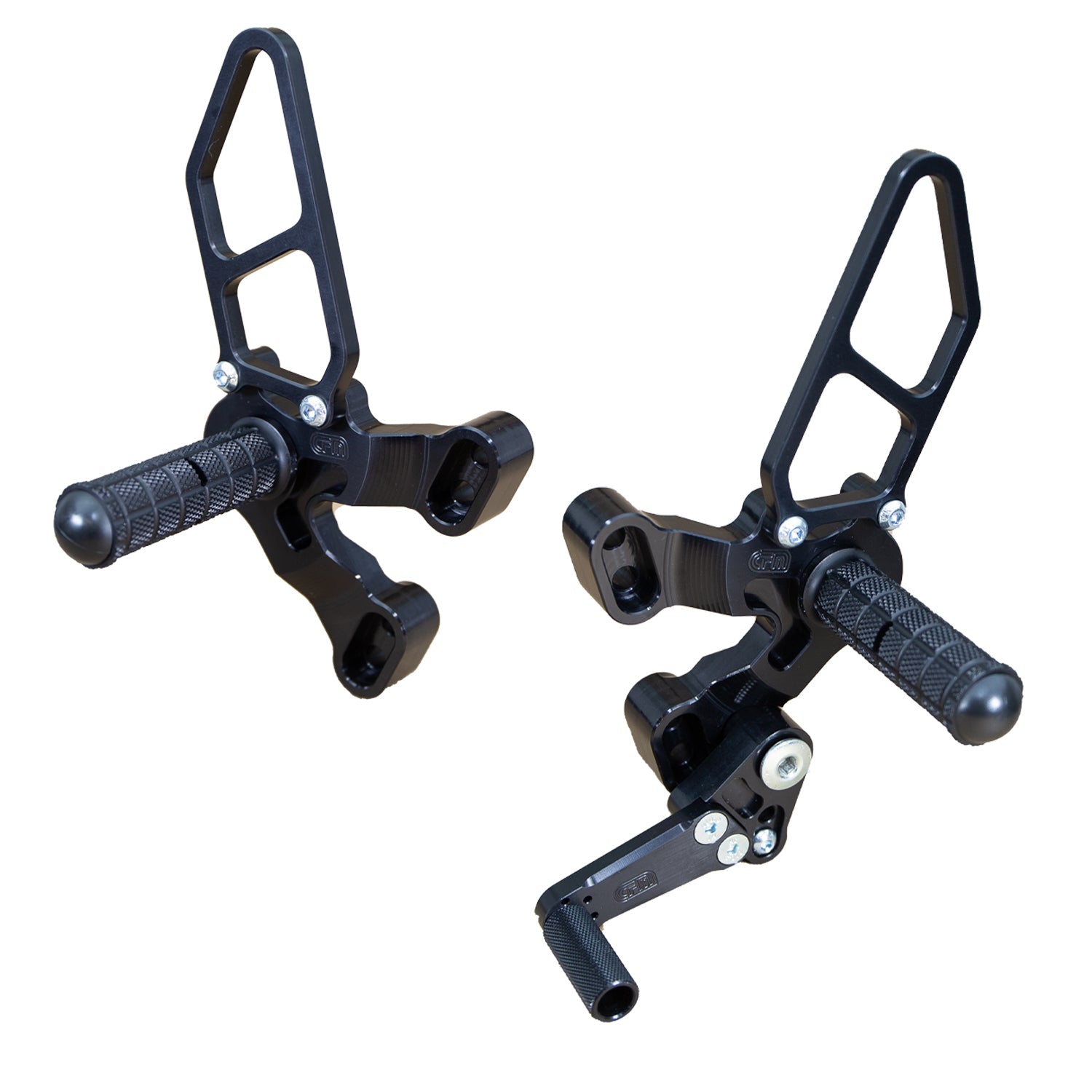

The foot controls are one of the most vital connections you have with your motorcycle. As a result Woodcraft designs and builds the best Rearsets available to ensure your motorcycle reacts the way you intend it to.
- CNC machined from 6061-T6 billet aluminum and offer more than twice the durability of OEM rearset brackets.
- 3-piece Pedals giving you an even stronger assembly and continuing our tradition of easy part replacement.
- Our trick knurled footpegs give supreme feedback and the best traction available today.
- Woodcraft rearset kits offer eccentric foot and toe pegs for adjustability (where applicable).
- Virtually any part in our rearset kit can be purchased separately
TECHNICAL DATA:
Shift Pattern: This basic rearset kit comes wit a shift pedal and can be used in STD or GP shift.
Peg Movement: up 3/8" to 1.25''- forward 0.25" to back 3/8".
Quickshifter: Push type quickshifter in STD shift- Pull type in GP shift - requires purchase of a shorter shift rod.

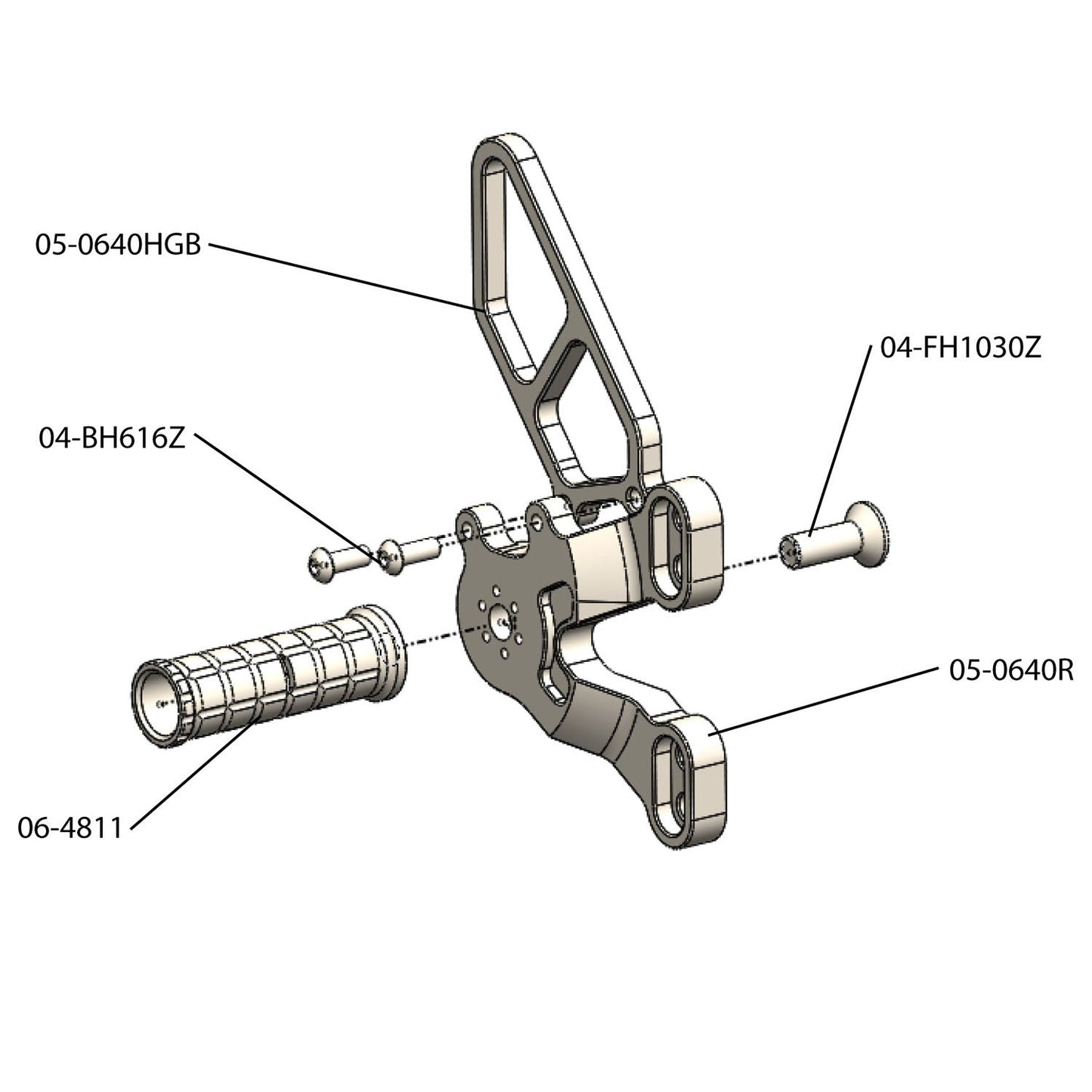

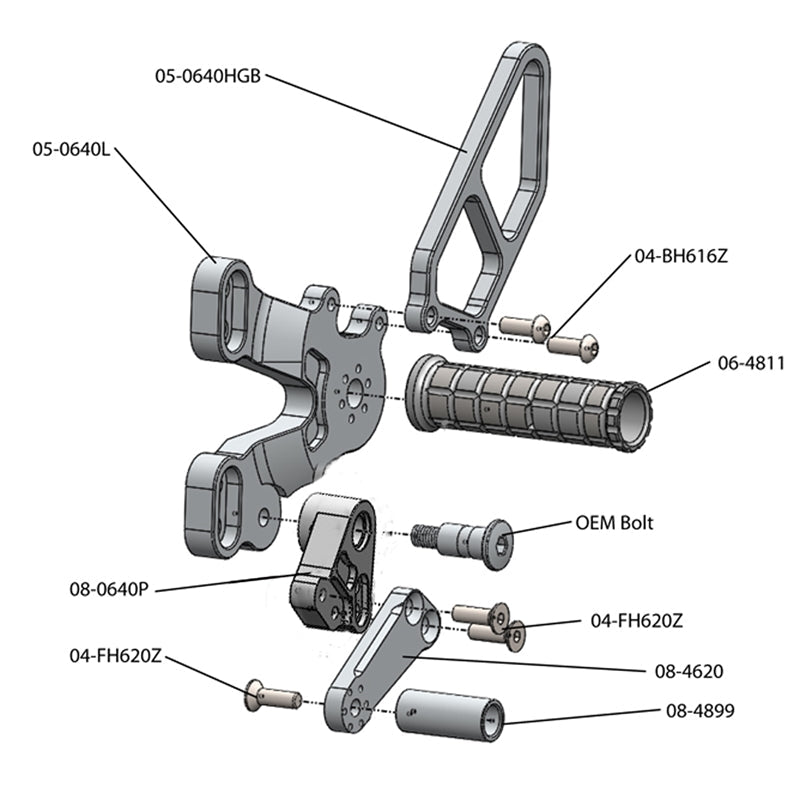

OEM Parts: Woodcraft rearsets assume you are replacing OEM rearsets. This kit utilizes some OEM components - see exploded drawings for details.
Notes
In the low position- the shifter can contact the OEM bodywork. For clearance- use a drum sanding bit with a dremel tool to make a small notch (this is explained in the Installation Instructions). If you require GP shift using a Ducati unit- please order a 05-0641 or 05-0641B kit.
Will not work on Streetfighter due to different exhaust system.
Model Fitment
- 2007 Ducati 1098
- 2007 Ducati 1098 R
- 2007 Ducati 1098 S
- 2008 Ducati 1098
- 2008 Ducati 1098 R
- 2008 Ducati 1098 S
- 2008 Ducati 1198 SP
- 2008 Ducati 848
- 2009 Ducati 1098 R
- 2009 Ducati 1198
- 2009 Ducati 1198 S
- 2009 Ducati 1198 SP
- 2009 Ducati 848
- 2010 Ducati 1098 R
- 2010 Ducati 1198
- 2010 Ducati 1198 S
- 2010 Ducati 848
- 2011 Ducati 1098 R
- 2011 Ducati 1198
- 2011 Ducati 1198 S
- 2011 Ducati 848
- 2011 Ducati 848 EVO
- 2012 Ducati 848 EVO
- 2013 Ducati 848 EVO
Download Installation Instructions:
📄 - IN05-640_rev1021.pdf
