GPS.00.308.35100 - SW-MOTECH - Universal GPS mount kit with Phone Case - Incl 2" socket arm, for handlebar/mirror thread
GPS.00.308.35100 - SW-MOTECH - Universal GPS mount kit with Phone Case - Incl 2" socket arm, for handlebar/mirror thread
Share with a friend
Note: Sold out items may be available via special order, contact us if you are interested in this and we will advise on an ETA for it to be back in stock, and give you the opportunity to pre-order if you'd like.
Couldn't load pickup availability

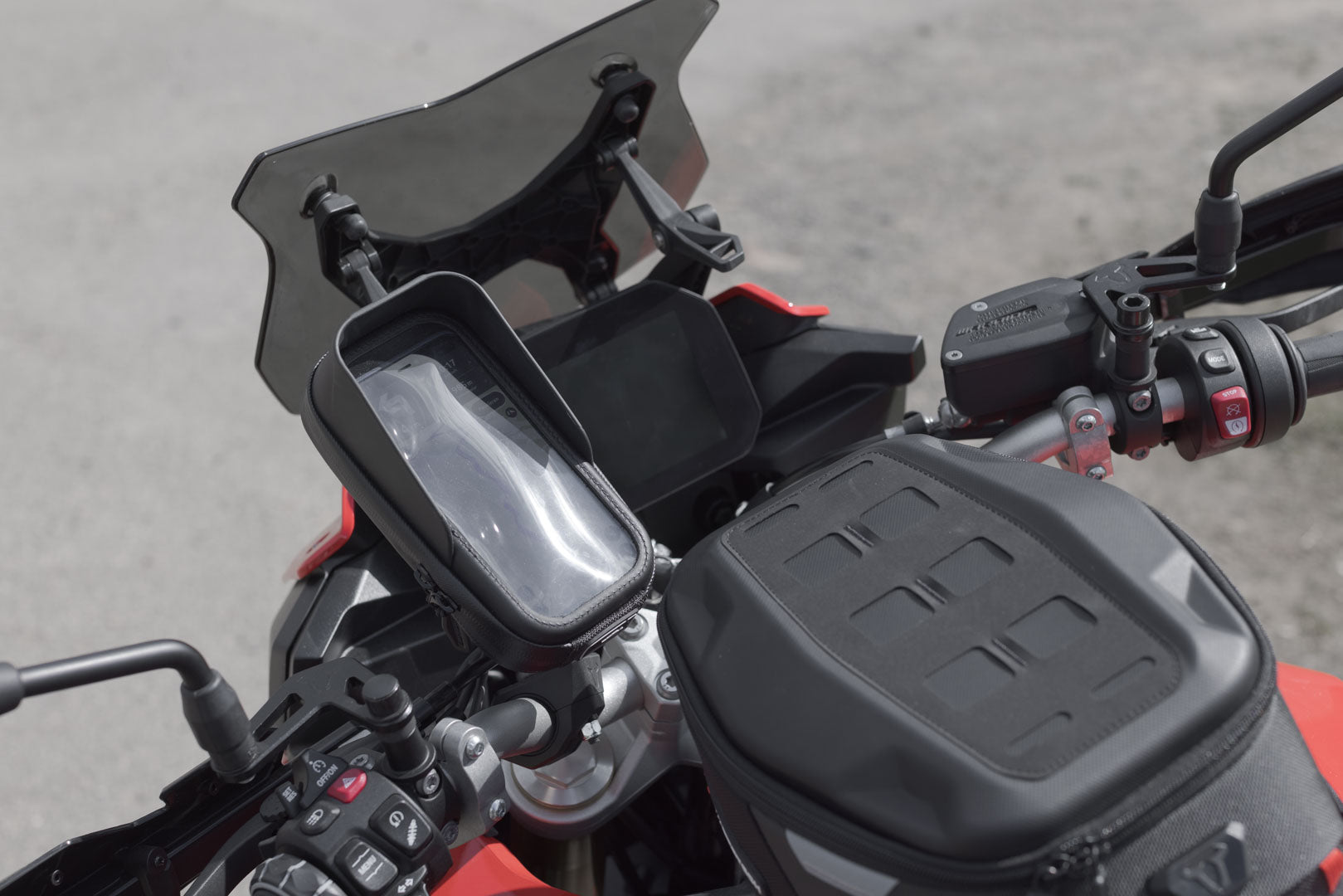

This all-round worry-free package includes a weatherproof Phone Case pouch and various mounting components. The T-Lock mount on the back of the Phone Case enables a quick mounting onto the Universal Navi kit: the Phone Case is secured to the socket arm with a simple quarter-turn in a clockwise direction.
Suitable for the following models:SamsungA10, A12, A20S, A20E, A21S, A30S, A31, A32, A50, A51, A40, A41, A42, A50, A51, A70, A71, A90, M11, M20, M21, M30S, M31, M31S, M51Galaxy SerieS5, S6, S6 Edge, S7, S7 Edge, S8, S8+, S9, S9+, S10, S10 Lite, S10e, S10+, S20, S20+, S20 FE, S20 Ultra, S21, S21+, S21 Ultra iPhone6, 6 Plus, 6S, 6S Plus, 7, 7 Plus, 8, 8 Plus, X, XR, XS, XS Max, 11, 11 Pro, 11 Pro Max, 12, 12 Mini, 12 Pro, 12 Pro Max, SE (2021)Xperia-SerieXA2, XA2 Ultra, XA2 Plus, XZ, XZ Premium, XZ1, XZ1 Compact, XZ2, XZ2 Compact, XZ2 Premium, XZ3 , L1, L2, L3, L4, 1, 1 II, 5, 5 II, 10, 10 II, 10 PlusHuaweiNova 5T, Mate Xs, Mate 20, Mate 20 X, Mate 20 lite, Mate 30, Mate 30 Pro, Mate 40 Pro, P smart, P smart+, P smart Z, P smart Pro, P30, P30 lite, P30 Pro, P40, P40 lite, P40 lite E, P40 Pro, P40 Pro+, Y5, Y5p, Y6, Y6p, Y6s, Y7XiaomiMi 11, Redmi Note 8 Pro

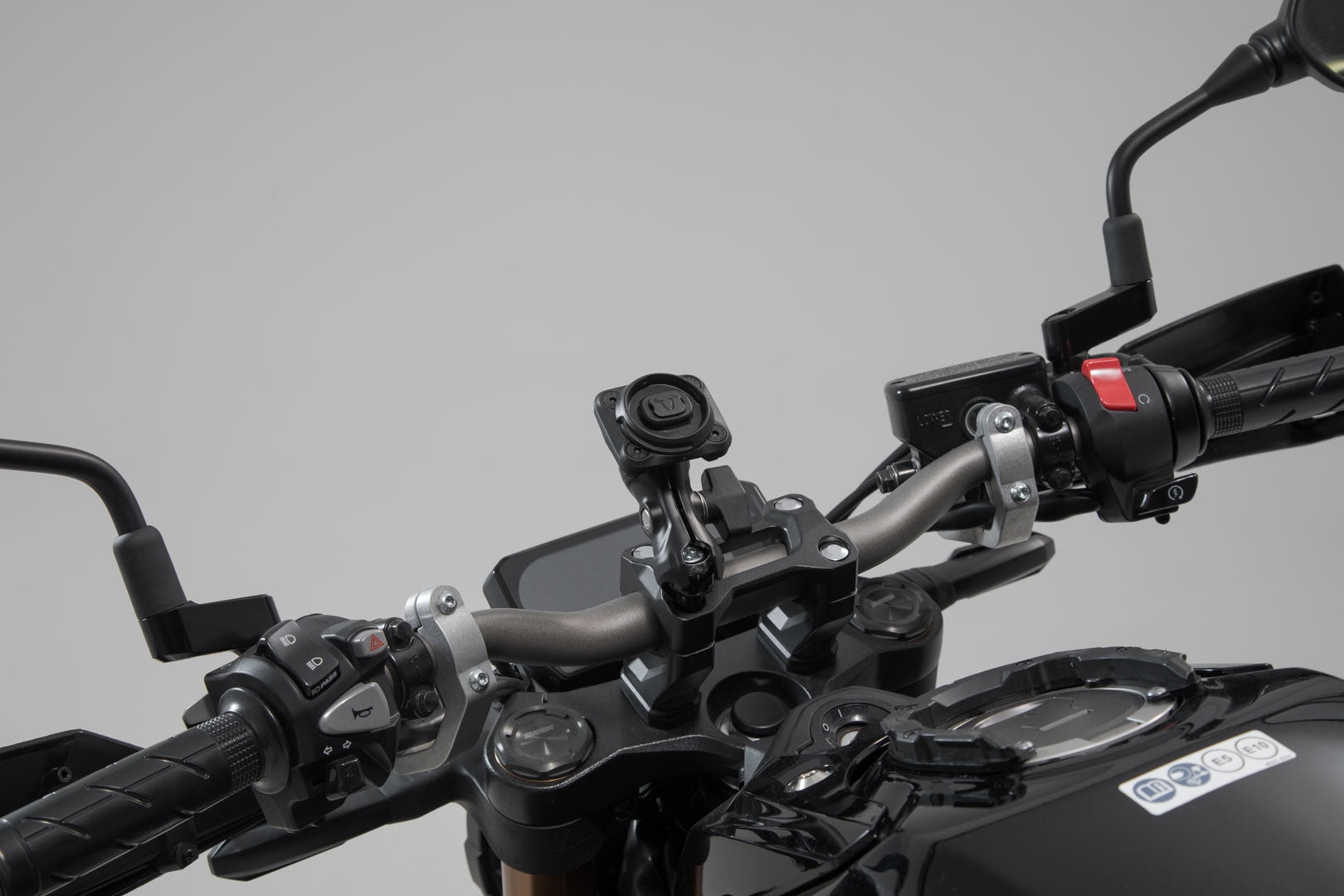

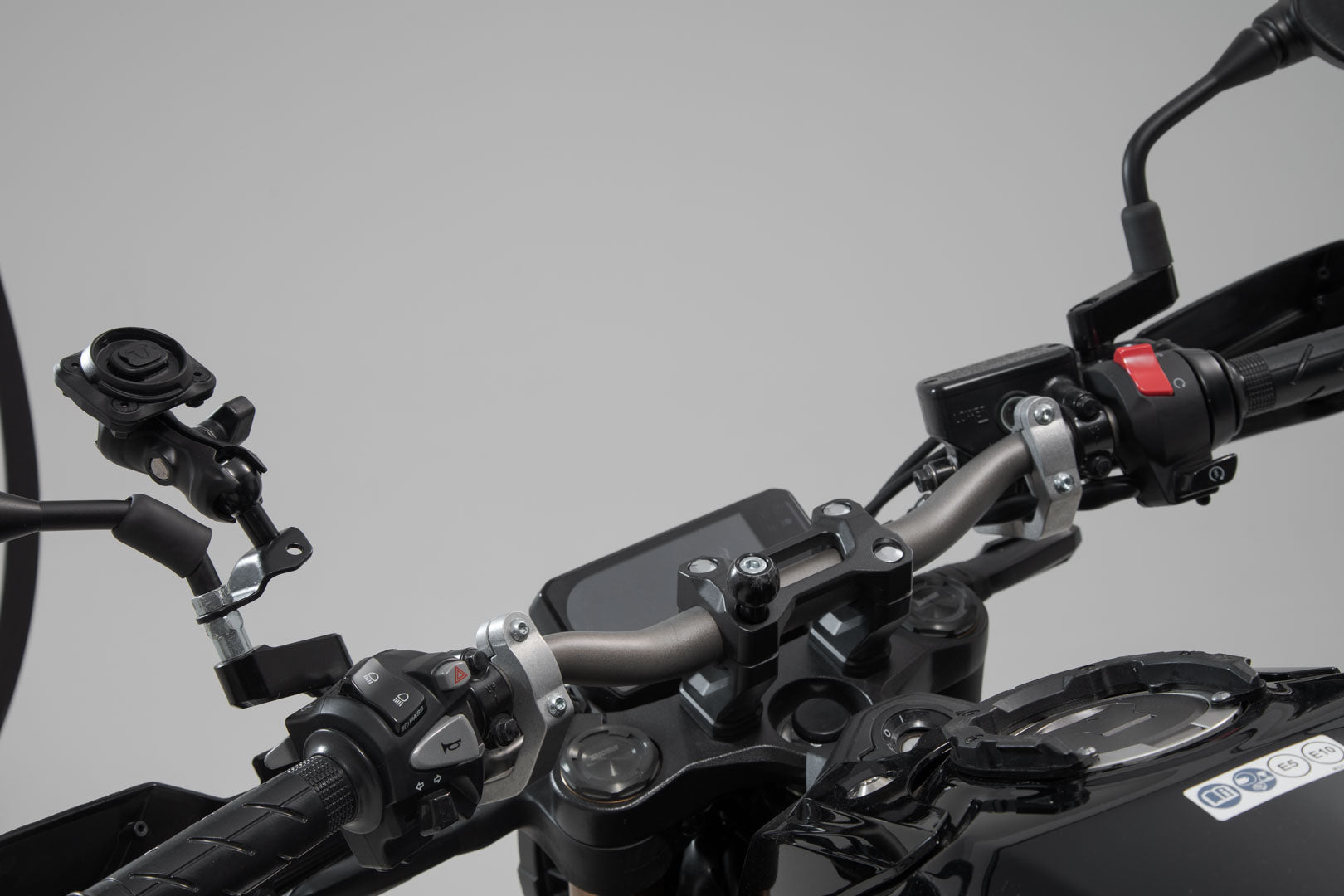

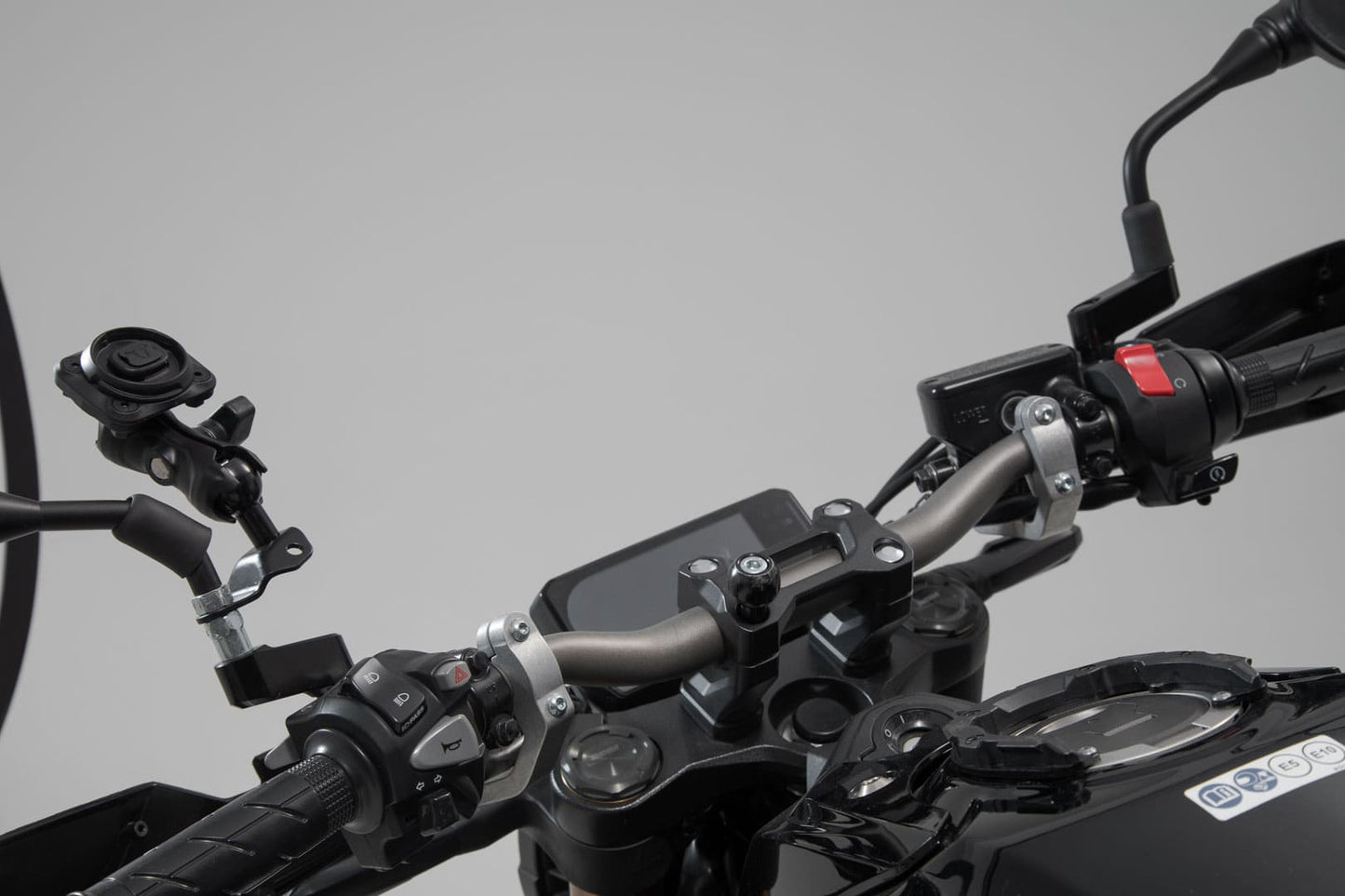

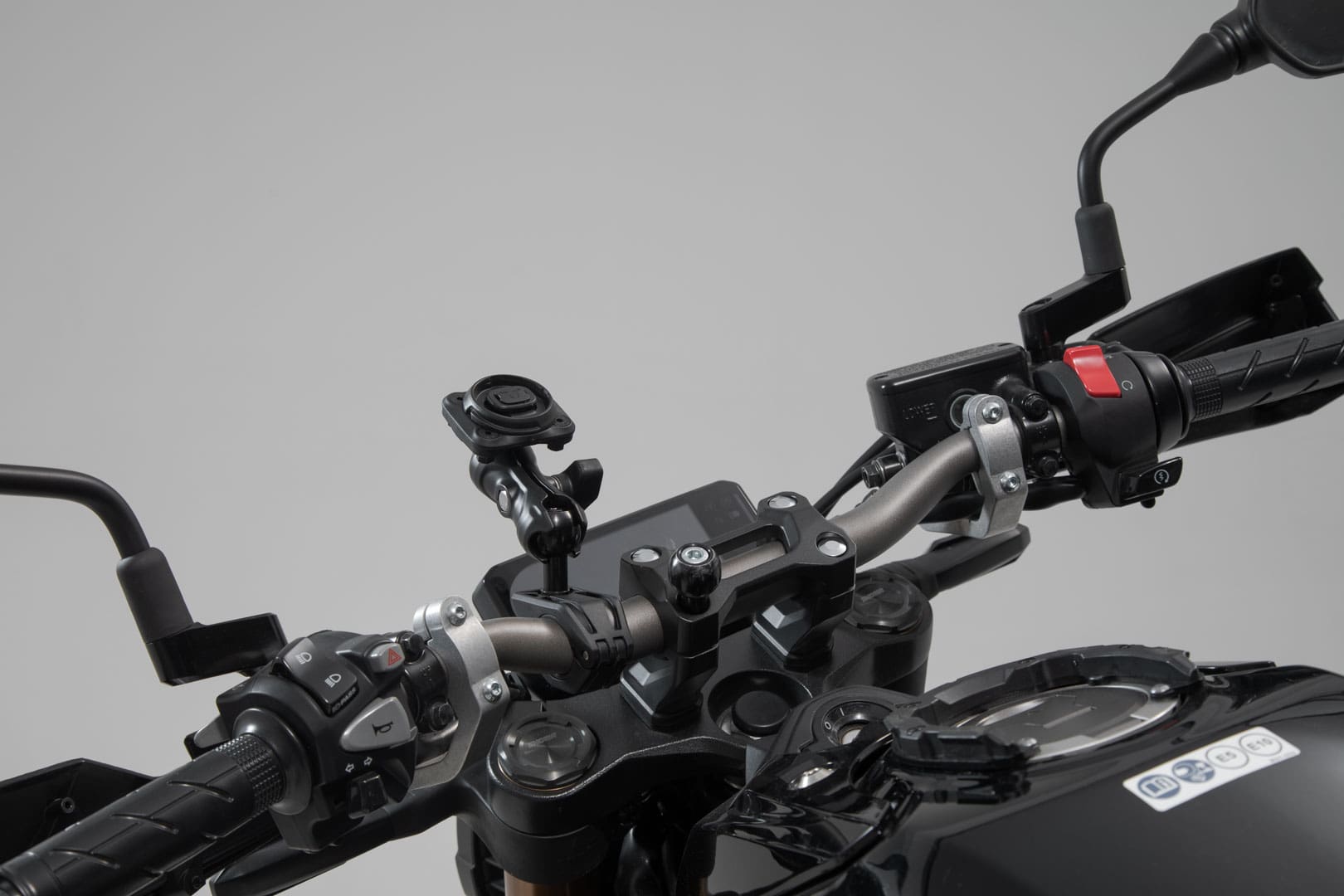

Our universal kit offers a variety of different attachment options on the motorbike: The included 1" ball can be mounted on a M6 or M8 thread, on a mirror thread holder or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22. 28 mm or 1". A pivoted socket arm makes positioning in the cockpit easy - so the display always remains in plain sight, without obstructing instrument view.
- Splash-proof and touch-compatible Phone Case pouch with sun visor
- For devices in portrait format
- Inner dimensions Phone Case: 83 x 171mm
- Outer dimensions Phone Case: 95 x 185mm
- Display window size Phone Case: 68 x 156mm
- T-Lock holder for quick attachment to the socket arm
- Balls and 2" socket allow for individual positioning
- Socket can be pivoted in two axes up to 90° or 45°
- 1" ball can be mounted on a M6 or M8 thread, on the mirror thread holder or with a mounting clamp
- Mounting clamp for handlebars with a diameter of 22. 28 mm or 1"
Package Contents:
- 1 x Phone Case
- 1 x Universal mounting clamp with rubber inserts
- 1 x Ball with M8 thread and M6 converter
- 1 x 2" socket arm
- 1 x Ball joint with mounting plate
- 1 x T-Lock holder
- Mounting instructions
- Mounting material
Technical Details:
Total Weight: appr. 0,6 kg / appr. 1.4 lb
Note
- Whether or not the touch screen panel is fully functional depends on the device model (e.g. fingerprint sensor)
FITS ON:
- 848 Streetfighter (2011-)
- DesertX (2022-)
- Diavel 1260 (2020-)
- Hypermotard 1100 (2008-2009)
- Hypermotard 1100 EVO (2010-2012)
- Hypermotard 1100 EVO SP (2010-2012)
- Hypermotard 1100 S (2008-2009)
- Hypermotard 796 (2010-2012)
- Hypermotard 821 (2013-2015)
- Hypermotard 821 SP (2013-2015)
- Hypermotard 939 (2016-)
- Hypermotard 939 SP (2016-)
- Hypermotard 950 (2018-)
- Hypermotard 950 SP (2018-)
- Hyperstrada 821 (2013-)
- Hyperstrada 939 (2016-)
- Monster 1100 (2009-2010)
- Monster 1100 S (2009-2010)
- Monster 1200 (2014-2016)
- Monster 1200 R (2016-)
- Monster 1200 S (2014-2016)
- Monster 696 (2008-2014)
- Monster 797 (2016-)
- Monster 821 (2014-2017)
- Monster 937 (2021-)
- Monster 937 + (2021-)
- Monster 937 SP (2022-)
- Multistrada 1200 (2010-2017)
- Multistrada 1200 Enduro (2016-2018)
- Multistrada 1200 S (2010-2017)
- Multistrada 1260 (2017-2020)
- Multistrada 1260 Enduro (2017-)
- Multistrada 1260 Pikes Peak (2017-2021)
- Multistrada 1260 S (2017-)
- Multistrada 1260 S D/Air (2017-)
- Multistrada 1260 S Grand Tour (2019-)
- Multistrada 950 (2016-2018)
- Multistrada 950 S (2018-)
- Multistrada V2 (2021-)
- Multistrada V2 S (2021-)
- Multistrada V4 Pikes Peak (2021-)
- Multistrada V4 Rally (2022-)
- Panigale V2 (2019-)
- Scrambler 1100 (2017-)
- Scrambler 1100 Pro (2019-)
- Scrambler 1100 Special (2017-)
- Scrambler 1100 Sport (2017-)
- Scrambler 1100 Sport Pro (2019-)
- Scrambler 1100 Tribute Pro (2021-)
- Scrambler CafÈ Racer (2017-)
- Scrambler Classic (2014-2017)
- Scrambler Desert Sled (2016-2020)
- Scrambler Flat Track Pro (2014-2017)
- Scrambler Full Throttle (2014-2020)
- Scrambler Icon (2014-2022)
- Scrambler Icon Dark (2019-2022)
- Scrambler Mach 2.0 (2018-2018)
- Scrambler Nightshift (2020-2022)
- Scrambler Sixty2 (2015-)
- Scrambler Urban Enduro (2014-2017)
- Scrambler Urban Motard (2022-)
- Streetfighter 1100 (2009-2016)
- Streetfighter 1100 S (2009-2016)
- Streetfighter V2 (2021-)
- Streetfighter V4 (2019-)
- Streetfighter V4S (2019-)
- Streetfighter V4S SP (2021-)
- Super Sport 950 (2016-2020)
- Super Sport 950 S (2016-2020)
- XDiavel (2015-2016)
- XDiavel S (2015-2016)
Download Installation Instructions:
📄 - gps_00_308_35100.pdf
