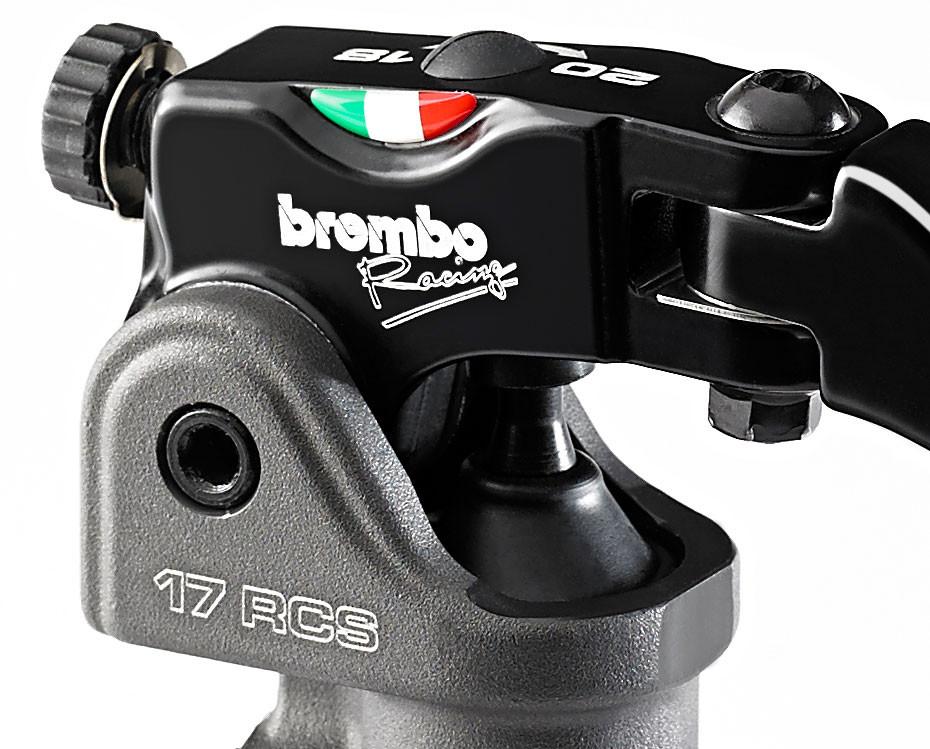

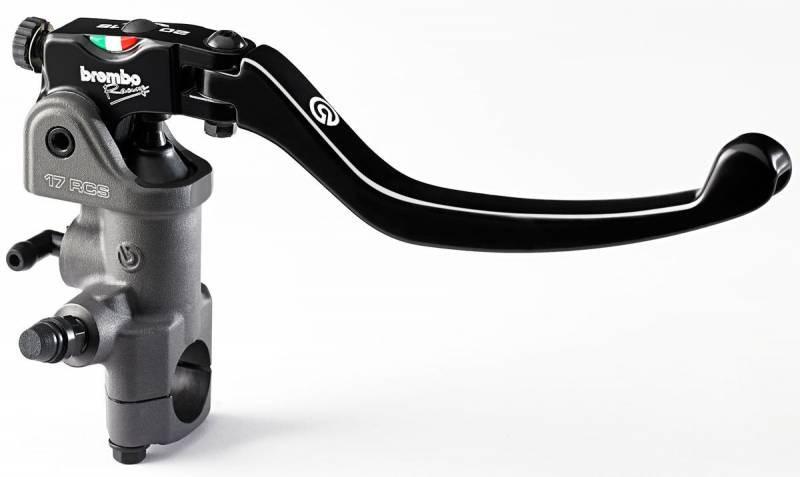

Brembo Racing 17 RCS LL Forged Brake Master Cylinder
Regular price
$295.00
Sale
Radial master cylinder designed for street bikes that allows maximum readiness and perfectly modulable braking in any conditions of use with excellent linearity between the force applied to the lever and the braking response.
** 17 mm specifically for the Brembo M50/Stylema brake calipers with 30mm pistons (OEM brake calipers on Panigale V4, Multistrada V4 and many other models) **

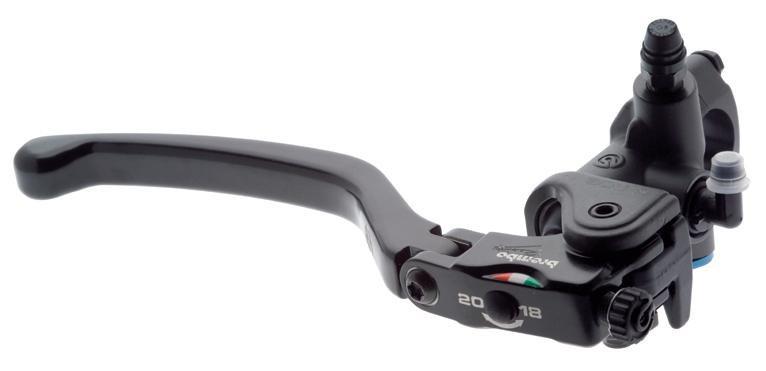

This brake master cylinder has the RCS system, patented by Brembo, for adjustment of the lever centre distance which allows you to obtain the ideal feeling between rider and bike. In just a few seconds using a simple screwdriver you can make the braking system more aggressive and reactive (20 mm) or softer and modulable (18 mm).
This model uses a 17 mm diameter piston and an folding long lever (LL), a detail which is particularly popular with Racing riders and those who love to ride on the track.
Brembo uses only cutting-edge procedures in order to guarantee excellent operation and performance. In fact, the aluminium alloy brake master cylinder main body is obtained through forging and then machined with numerically controlled equipment.
For the surface finishing oxidation was chosen which is normally used in MotoGP and Superbike.
TECHNICAL FEATURES | |
---|---|
Material | Forged aluminium |
Piston mm | 17 |
Lever ratio | 18-20 |
Lever type | |
Single/double disc | DOUBLE |
Surface protection | Hard anodized |
Weight (gr) | 350 |
Brake light micro-switch | Yes |
Fissaggio manubrio (mm) | 22,2 |
