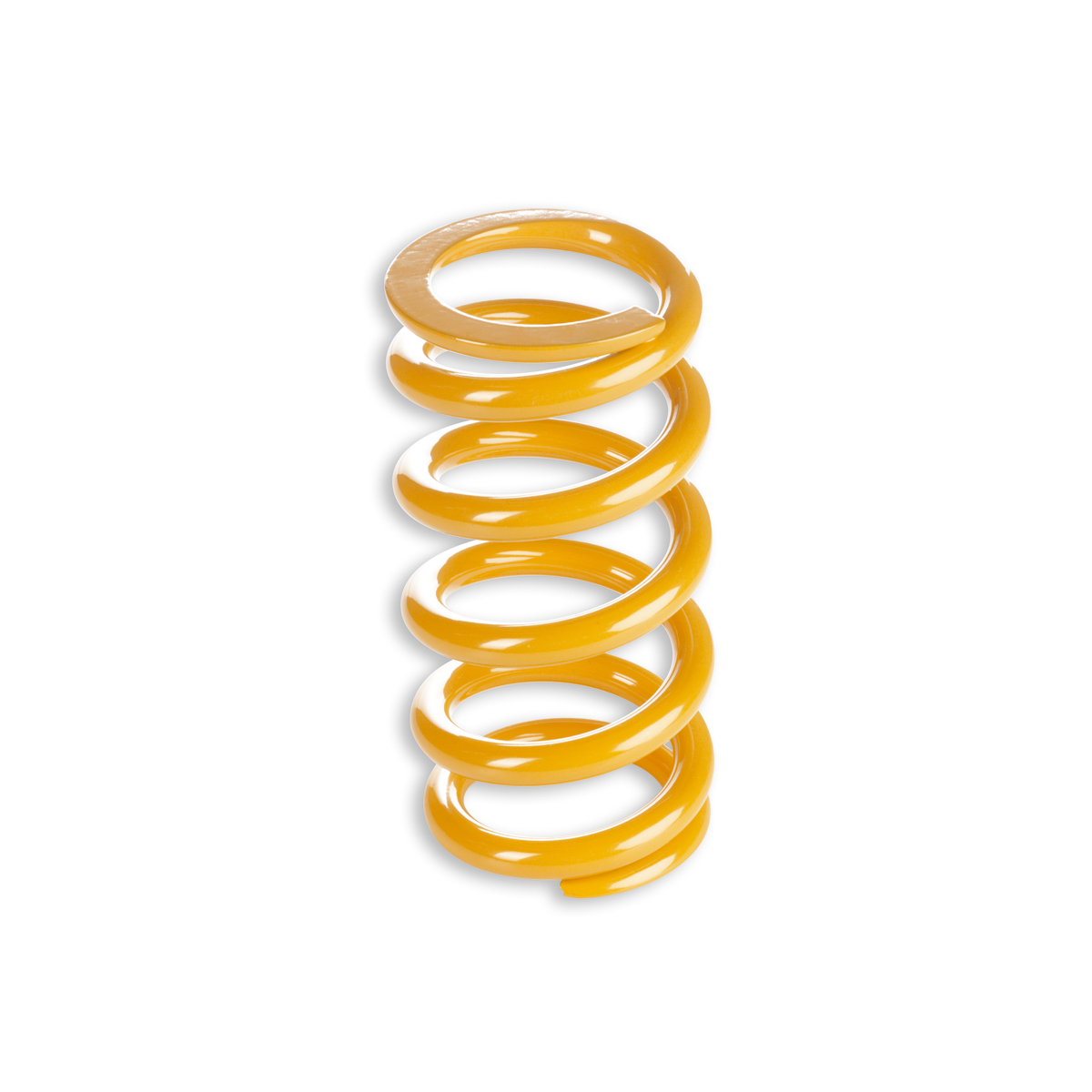

Öhlins Shock Spring - Panigale V4
Ohlins factory replacement shock spring for the Panigale V4 TTX GP rear shocks. This will also fit the OEM rear shock on the Paniagle V4S. Having a properly sprung shock is essential to unlocking the top performance potential of your shock!
Ducati Omaha Suggested Baseline Spring Rates:
(If rider weight is between two ranges, you can select either one. In general a slightly softer spring for street riding or a slightly stiffer spring for track riding is a very rough guideline on which to choose. If in doubt just Contact Us for guidance.)
Spring Rate = Rider Weight (including riding gear):
90 N/mm = <= 150 lbs.
95 N/mm = 160-180 lbs.
100 N/mm = 190-200 lbs.
105 N/mm = 210-220 lbs.
110 N/mm = 230-240 lbs.
115 N/mm = >250 lbs.
OEM SPRING RATES WERE 95 N/mm ON 1ST GEN PANIGALE V4S ('18-'19) AND 85 N/mm ON 2ND GEN ('20+). DUCATI LIGHTENED THE SPRING RATES AND RAN MORE PRELOAD ON THE SPRINGS IN 2ND GEN. THE RATES FOR TRACK USE ARE UNCHANGED, THE LIGHTER SPRINGS FOR STREET USE PROVIDED BETTER RIDE QUALITY.
RATES LISTED ARE FOR TRACK USE - SUBTRACT 10 N/mm FOR GENERAL STREET USE
THESE ARE BASELINE RATES BASED UPON OUR EXPERIENCE WITH PANIGALE V4 SETUP AND GUIDELINES FOR TRACK USE FROM ÖHLINS. THIS IS NOT DESIGNED TO BE A DEFINITIVE GUIDE OR NUMBERS SET IN STONE, SUSPENSION SETUP IS AS MUCH ART AS IT IS SCIENCE SO IF YOU DISAGREE WITH THE RECOMMENDATIONS AND WANT TO CHOOSE A DIFFERENT RATE, GO FOR IT! IF YOU ARE RACING, PLEASE CONSULT WITH YOUR SUSPENSION TUNER OR CONTACT US FOR SPECIFIC RECOMMENDATIONS.
