Ducati THOK MIG-S Electric Bicycle All-Mountain Bike

Ducati THOK MIG-S Electric Bicycle All-Mountain Bike

Regular price $5,795.00 Sale

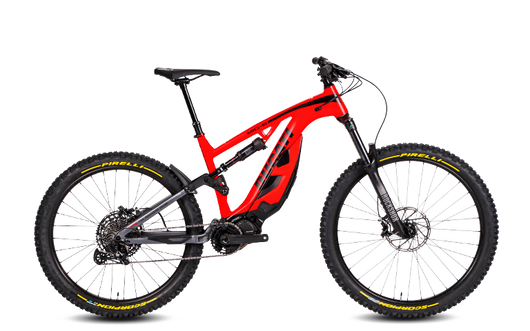

Ducati THOK MIG-S Electric All-Mountain eBike

MIG-S Electric Mountain Bike

SOME SIZES ARE IN STOCK, OTHERS CAN BE ORDERED FOR YOU FROM THE WAREHOUSE.

  • S Size - ORDER
  • M Size - IN STOCK!
  • L Size - IN STOCK!
  • XL Size - ORDER

Frame Size Guideline (Recommendation based upon rider height):

Small - 5'0" - 5'6"
Medium - 5'5" - 5'9"
Large - 5'7" - 6'2"
X-Large - Over 6'1"



All Mountain e-mtb by Ducati

An All Mountain ebike with sporting features, for those looking for an agile, performing and fun e-mtb in all conditions.

The Ducati MIG-S with 150mm travel at the front and 140 rear, thanks to high-level components (Marzocchi Bomber Z2 fork, Fox Float TPS rear shock, 4-calipers Sram Guide T brakes, 29” Thok e-plus rims at the front and 27.5" rear, 12 speeds Sram SX transmission 11-50) it is an e-mtb that will allow you to explore any trail with a unique ride-ability. Its geometries are designed to safely face both the most demanding climbs and the roughest descents. Equipped with Shimano Steps E8000 engine and 504Wh Shimano battery positioned below the down tube to improve handling.

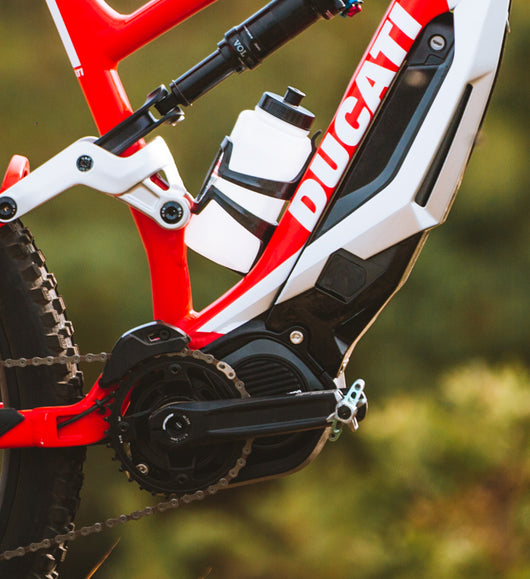

Shimano E8000. Specific for e-mtb. It has three levels of assistance (Eco, Trail, Boost) and a Power-Walk mode. With the Shimano E-Tube app you can customize the Trail and Boost assistance levels to three different positions. 630 Wh Shimano battery.

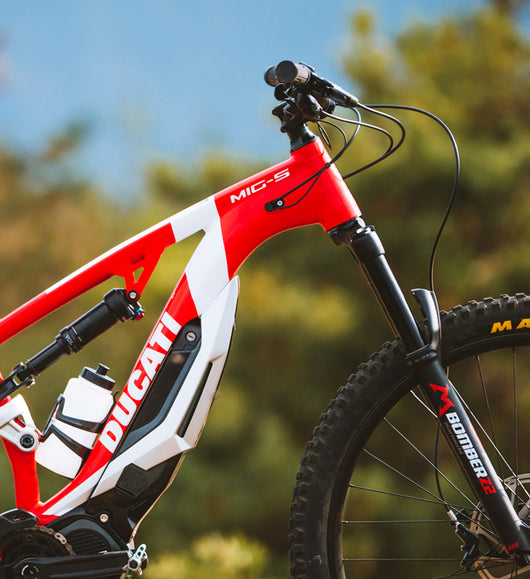

6061 aluminum frame, forged and CNC-machined parts with hydroformed tubes with variable thickness. The battery situated below the diagonal tube lowers the centre of gravity and improves handling.

Marzocchi Bomber Z2 air, customized tuning fork with 150mm travel. FOX Float DPS customized tuning rear shock with 140mm travel, and Horst-link TPS (Thok Progressive System)

Thok e-plus rims: 29" front and 27,5” rear. MAXXIS Assegai tires: 29"x2.6 EXO+, TR, 3C front and 27.5"x2.6 EXO+, TR, 3C rear. They allow to easily overcome the most difficult obstacles and maintain maximum grip on any terrain.

The graphics realized by Aldo Drudi’s D-Perf enhance the lines of the hydroformed aluminum frame.

The Ducati MIG-S is ready to take you on all your off-road adventures.

Ducati THOK MIG-S Geometry

Size (mm)

S

M

L

XL

Seat Tube Length - center to Top

400

435

470

520

Top Tube Length , Horizontal

560

600

630

665

Bottom Bracket Height (mm)

350

350

350

350

BB Drop (mm)

13

13

13

13

ChainStay Length (mm)

450

450

450

450

Seat Tube Angle

74,°7

74,7°

74,°7

74,°7

Head Tube Angle

66°

66°

66°

66°

Head Tube Length (mm)

100

110

130

150

 Fork Height

 552

 552

 552

 552

Wheel Base (mm)

1172

1197

1228

1265

Stack (mm)

596

606

624

642

Reach (mm)

413

432

456

483

Crank Length (mm)

165

165

165

165

Stem Length (mm)

45

45

45

45

Handlebar Width (mm)

780

780

780

780

Fork Offset (mm)

44

44

44

44

Stand over

810

810

810

810

Trail

114,6

114,6

114,6

114,6
