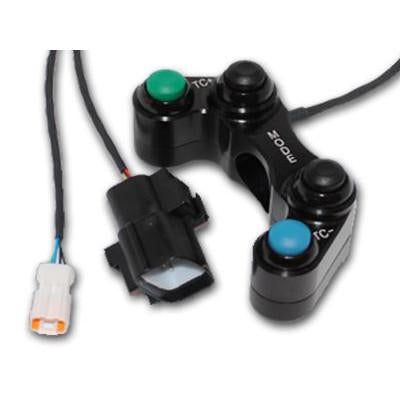

Traction UP and Traction DOWN / Mode switch assembly for Ducati race or road bikes fitted with the Nemesis TCS Traction control system.
This switch set has been created for users of the Nemesis TCS system on Ducati Superbikes 848/1098/1198 and Desmosedici. The assembly replaces the standard 2 way blue/green switch set as supplied with the TCS system and also provides two integral black buttons for controlling the dashboard Mode functions.
This assembly also has two connectors on flying leads, one to plug into the Nemesis TCS wiring, and one to plug into the standard bike loom for controlling the dash Mode. No modifications of the Nemesis or the bike wiring are necessary.
Rugged machined aluminium construction with fully waterproof switches provide greater crash protection as well as electrical integrity.
Width - 20.5mm
Width at centre - 13.5mm
Cable length 380mm
Coating - Black anodise
Made in the UK
Pre-wired connectors to suit the standard bike wiring and TCS kit
This switch assembly may also be used on any race bike providing the user is able to adapt the wiring.
